technical introduction Basic Form of Models

2.5 Multiedges

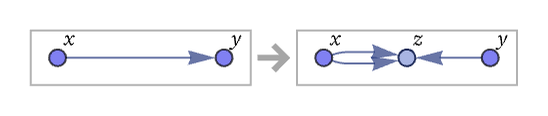

Rules can involve several copies of the same relation, corresponding to multiedges in a graph. A simple example is the rule:

{{x, y}} -> {{x, z}, {x, z}, {y, z}}
RulePlot[ResourceFunction[ "WolframModel"][{{x, y}} -> {{x, z}, {x, z}, {y, z}}], VertexLabels -> Automatic, "RulePartsAspectRatio" -> 0.25]

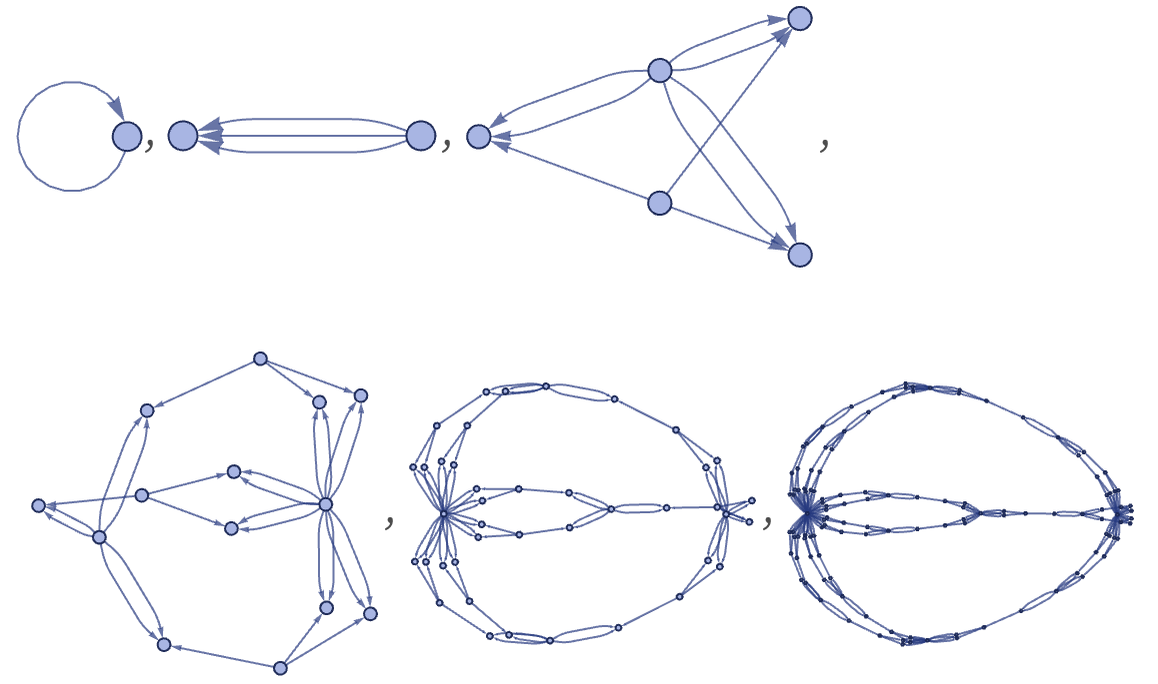

Running this rule produces a structure with 3n edges and nodes at step n:

ResourceFunction[ "WolframModel"][{{{x, y}} -> {{x, z}, {x, z}, {y, z}}}, {{1, 1}}, 5]["StatesPlotsList", "MaxImageSize" -> 180]

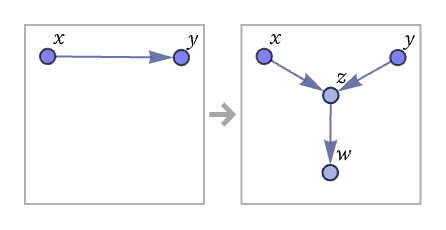

Rules can both create and destroy multiedges. The rule

{{x, y}} -> {{x, z}, {z, w}, {y, z}}
RulePlot[ResourceFunction[ "WolframModel"][{{x, y}} -> {{x, z}, {y, z}, {z, w}}], VertexLabels -> Automatic, "RulePartsAspectRatio" -> 1]

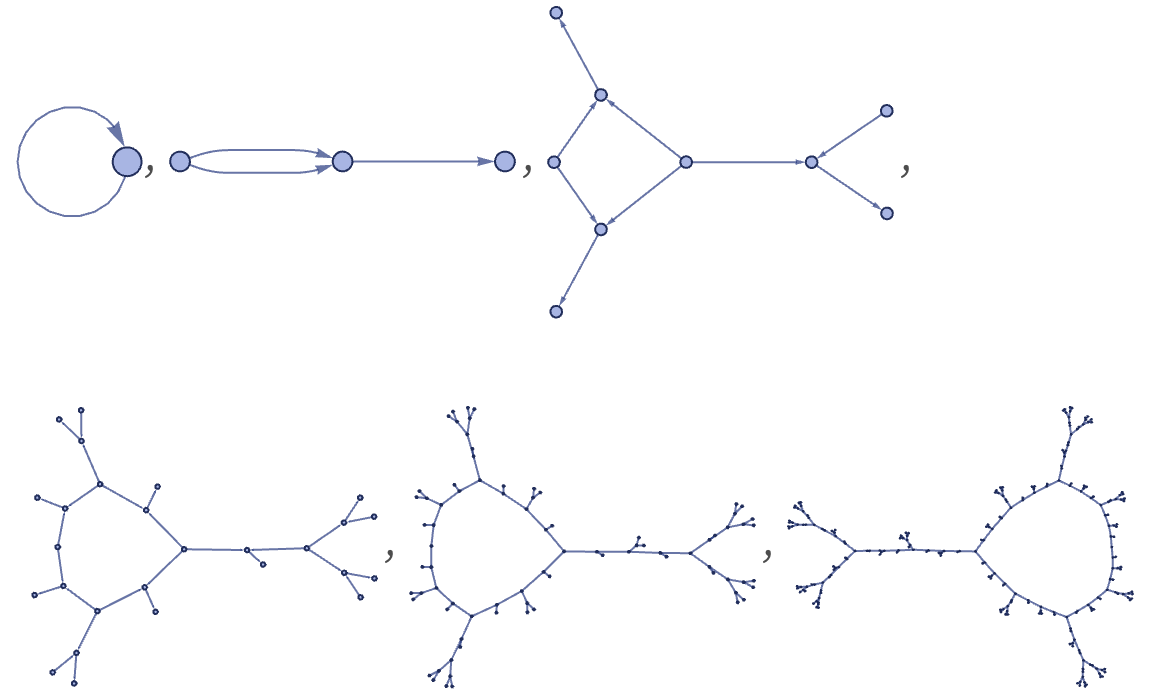

generates a multiedge after one step, but then destroys it:

ResourceFunction[ "WolframModel"][{{{x, y}} -> {{x, z}, {z, w}, {y, z}}}, {{1, 1}}, 5]["StatesPlotsList", "MaxImageSize" -> 180]
